One of our best-selling products.
ACN5240 rubber coated metal composite material is based on cold-rolled steel plate with NBR rubber coating on both sides.
Withstand high temperature for long term and have excellent noise reduction performance in the braking system.
Fine shock damping and noise absorption effect.
Especially suitable for the pads fixed by clip.
High cost performance and can replace the import material.

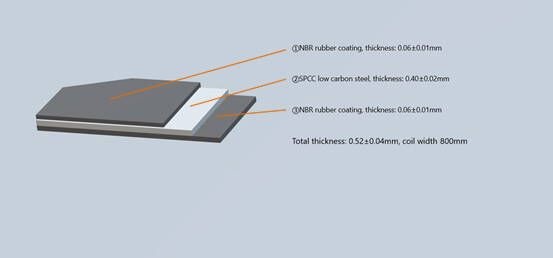

Construction
Specifications
|
Type |
Total thickness |
Rubber thickness |
metal |
|
|
metal type |
thickness（mm ） |
|||
|
ACN5240 |
0.52 |
0.06* both sides |
SPCC-1（Full Hardness） |
0.40 |
|
ACN4640 |
0.46 |
0.03* both sides |
SPCC-1（Full Hardness） |
0.40 |
The First RCM Production Line in China
The production line is 360 meters long in total and 20 meters width, the key equipments are from France, Germany and Japan.
Product Dimension
Available metal substrates thickness are between 0.2mm-0.8mm.Max width is 800mm.Rubber coating thickness is between 0.02-0.12mm single and double-side rubber coated metal roll material can meet the requirement of different customers.
Main Application
Mainly used as the noise damping and shock absorption shim for brake system. This material is especially suitable for the pads fixed by clip.
Characteristics
High adhesive force of the rubber coating and suitable for high temperature environment and fluids including engine oil, anti-freezer and coolant, etc.
Uniform thickness of steel plate and rubber coating and the surface is flat and smooth.
Steel plate is with anti-rust treatment and bear good corrosion resistance property.
Fine shock damping and noise absorption effect. High cost performance and can replace the import material.
